Garmin 2610 Screen Restoration

DSC00796
Well this is what happened to my 2610 after some temperature shock and rain. It was showing the signs of delamination since the start of spring with a few little dots but I never thought it would come to this!!
The one thing that you might think is why bother! Money is the biggest reason. Six large for the new Zumo with all the tricks and then I would need a two hundred and fifty dollar touratech mount. No thanks! I have four kids to feed, so here we go!
DSC00807
Got the six weatherproof screws out and four screen screws out, plus what looks like a ground cable screw.

DSC00818
Once you get the screen off of the face, pull out the screen water seal and rinse off all the built up dirt.
DSC00817
For the case screws DON’T lose the little red seals. They tend to stick in the case.

DSC00823

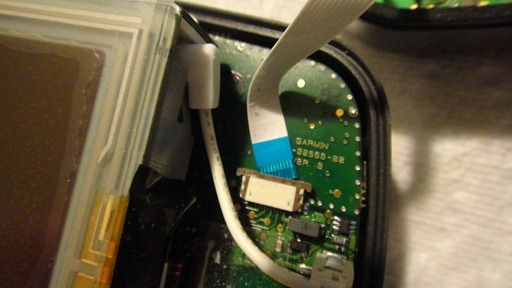

Disconnect the ribbon cables from the backboard to the screen and also the front cover ribbon to the screen or you might mess them up while moving stuff around like I did below.
DSC00828
                                                               OOPS!
DSC00805
As you can see my screen is pretty scratched up.DSC00813
Buffing out the screen with a Dremel on low speed using a cotton wheel and some cleaner wax for cars.
DSC00811

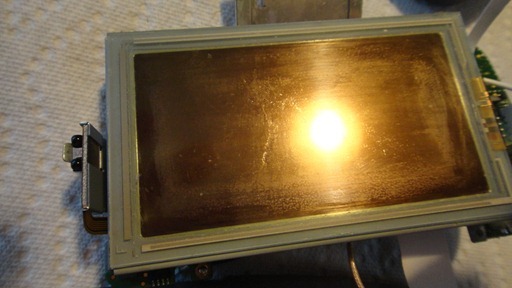

First pass and better.
DSC00814
Second pass and getting better.

DSC00819
This is the first protector I attempted to use.
DSC00820
Cut to shape.
DSC00822
Protector laid down and has a very soft tack to it.
DSC00824
Unit together and looks ok but the top of the screen is a little funky.
When the unit was powered up it looked great until it was in the sun and was impossible to see. These units always had a lot of sun washout and this was useless.
Step two was crack it back open and try again and find something clear to lay on.

DSC00852
Zagg is my new best friend but you have to put it on very carefully. It is applied with a soap solution like car window tint. When I applied it I had paper towels covering everything around the screen and you squeegee the water and air out the sides. I had two little spots that would not squeegee out and the instructions state they will go away. A few hours later and they were gone. Also I left the memory card door open to let any moisture escape once the unit was back together. Zagg also says to let the unit sit for 24 hours before using.

DSC00848
Zagg screen done. Sun wash was the same as stock and touch screen worked like stock.
DSC00849

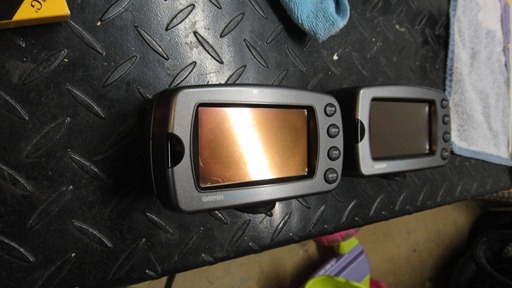

Example of a stock screen.
DSC00850
Zagg.
DSC00851
Stock.
Since this went good I did my friends screen and it went smoother and came out looking way better than mine. It seems this was a big problem with these units all in the streetpilot 2XXX class.
If you want me to do a repair for you I would charge $35 and you would have to also pay for two way prepaid shipping. FATTKAW@hotmail.com
